Morimoto Backup Light Boost Bar - Universal LED Reverse Light

Maximize your reverse lighting with the Morimoto Backup Light Boost Bar delivering an incredible 2,700 raw lumens. This premium LED light bar mounts to your license plate frame and provides exceptional illumination when backing up.

Key Features

• Output: 2,700 raw lumens / 1,950 effective lumens
• Power: 29W maximum
• Light Source: 45x CREE J Series 4500K warm white LEDs
• Installation: Plug-and-play with Morimoto XB tail lights or universal wire tap
• Mounting: Bolts to standard US-spec license plate mounts
• Finish: Satin black powder coat
• Warranty: Industry-leading 5-year warranty
• Weight: 0.6 lbs

High Output Performance

While there are plenty of LED bulb upgrades for stock reverse lights, when it comes to a backup light boost that will complement your Morimoto XB LED tail lights, this is a no-brainer. The BLBB bolts on, it's plug-and-play, and it generates maximum output in reverse with 2,700 raw lumens translated into 1,950 real lumens after transmission through the optical lens.

Easy Setup - Two Installation Options

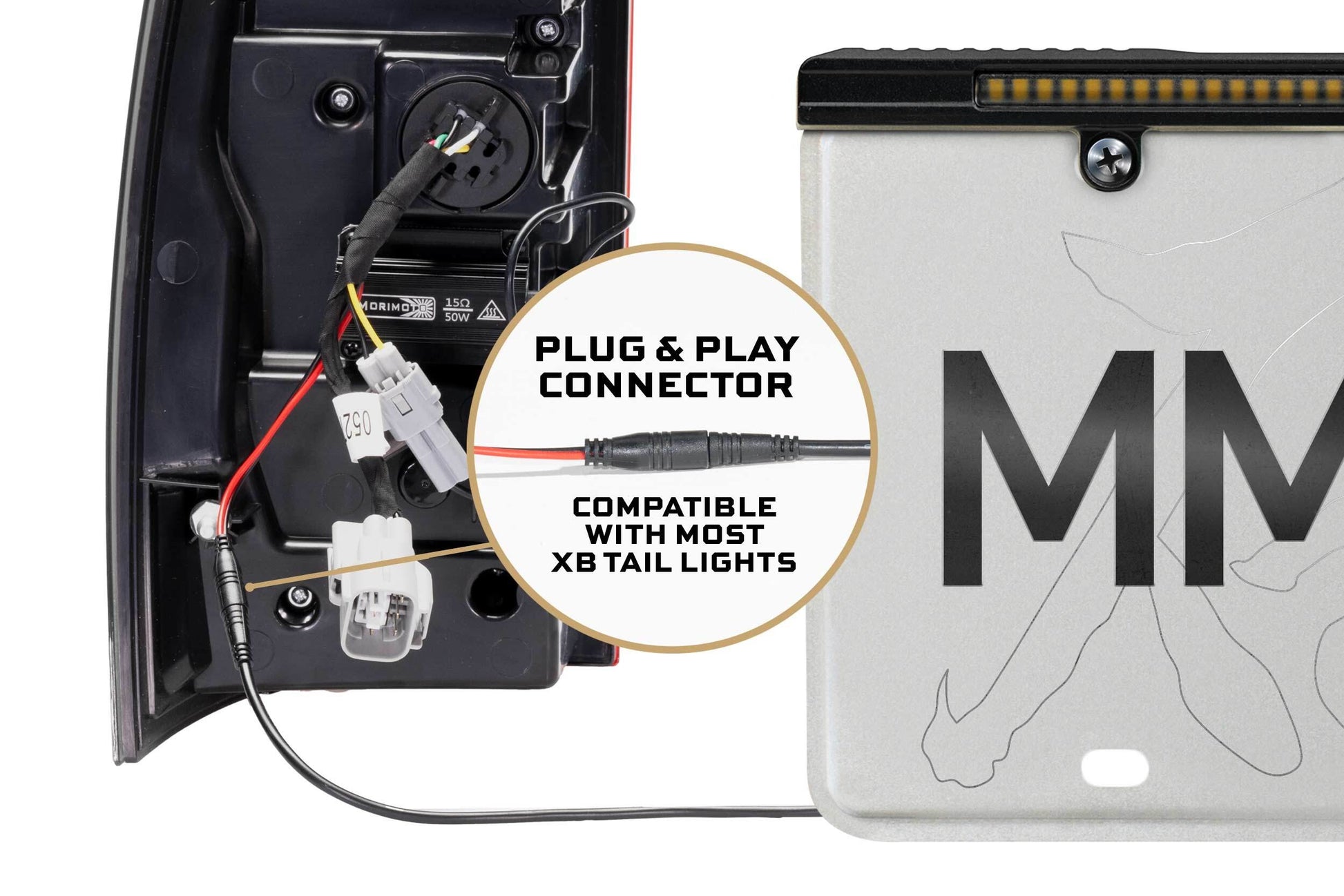

Option 1 - Plug & Play: If you're running a set of Morimoto XB tail lights with the Backup Light Boost connection, these will be super easy to install since the input connector plugs directly into the reverse light circuit wiring on the back of your tail lights.

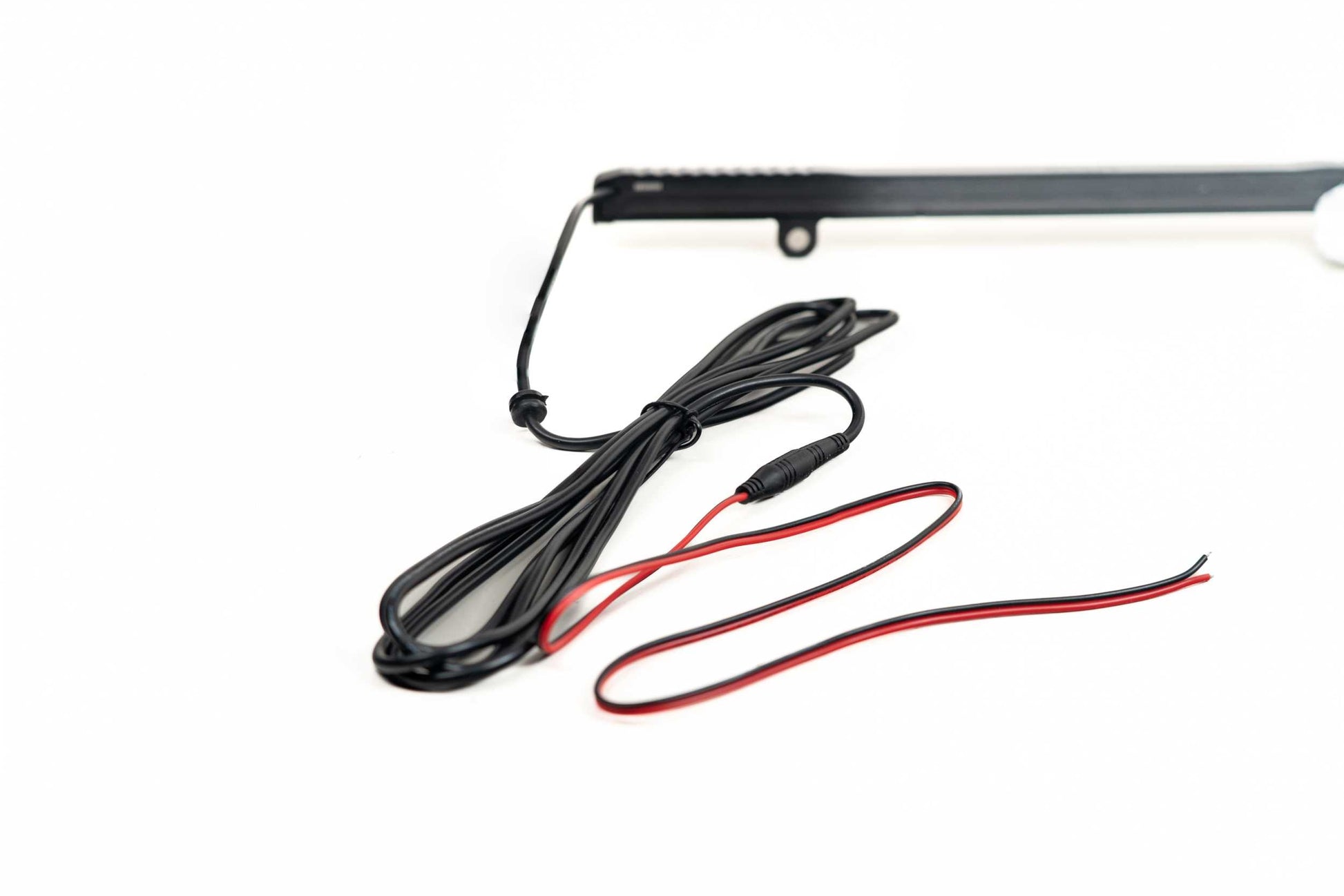

Option 2 - Universal: No Backup Light Boost connection? No problem. The system includes 1.5 meters of integrated wiring and a high-quality tap kit to draw 12V from your factory reverse light harness. An integrated rubber grommet keeps moisture and dust out of any pass-through hole if necessary.

Bolt-On Installation

The Backup Light Bar bolts onto your vehicle's top two license plate mounts. Its die-cast aluminum housing is contoured according to the geometry of US-spec license plates for a flush fit, and the mounting points are positioned according to the same universal standard. The system is finished in a satin black powder coat.

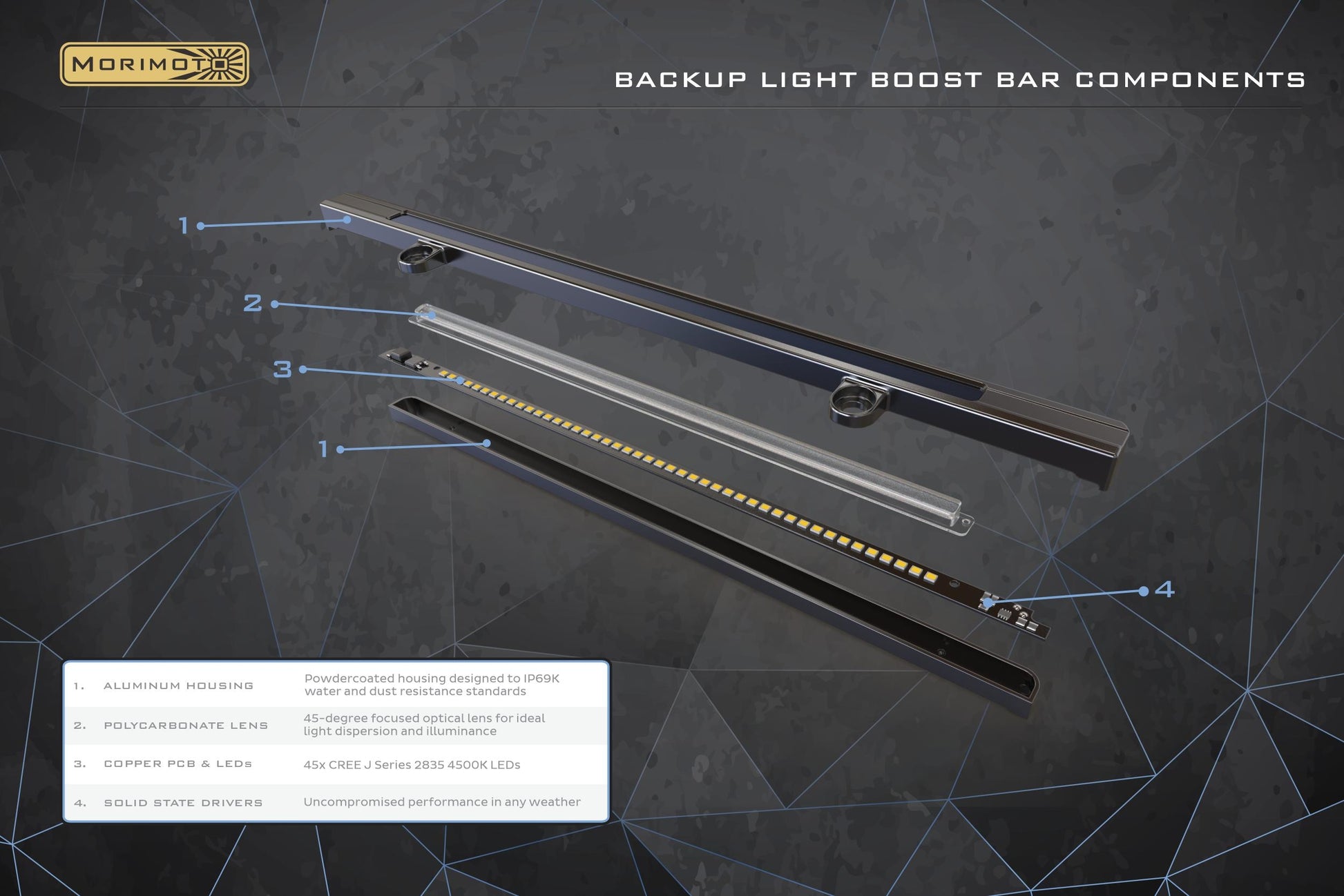

Optically Advanced Engineering

The Morimoto Backup Light Boost Bar relies on a combination of optical refinement and raw power to produce the perfect reverse light beam pattern. Morimoto's optical engineering team optimized the lens to distribute the most possible light in the most effective beam pattern based on typical surface mounting angles. This is a fully engineered product, and that shows in the results.

Beam Pattern Performance

• At 10-degree mounting angle: -20° to +25° vertical range
• At 0-degree mounting angle: -30° to +15° vertical spread
• Easily exceeds the illumination range of any standard backup light

Note: The output produced by this product far exceeds the legal limit for a reverse light application.

Compatible with Morimoto XB Tail Lights

• 2017-2022 Ford Super Duty (LF350/LF351)
• 2009-2014 Ford F-150 (LF720/LF721)
• 2015-2020 Ford F-150 (LF722/LF723)
• 2021-2024 Ford F-150 (LF734/LF735)
• 2009-2018 Dodge Ram (LF724/LF725)
• 2014-2019 Chevrolet Silverado (LF728/LF729)
• 2014-2018 GMC Sierra (LF730/LF731)
• Plus many more Morimoto XB tail light models

What's Included

• 1x Morimoto Backup Light Boost Bar
• 1x Power tap kit for universal installation
• 5-year warranty

Specifications

• Light Source: 45x CREE J Series 2835 LEDs
• Color Temperature: 4500K warm white
• CRI: 80
• Driver: 180mA producing 29.9W maximum power
• Dimensions: 13" L x 2" W x 1" H
• Material: Die-cast aluminum housing
• Finish: Satin black powder coat
• Manufactured: China
• Compatibility: All 9-16V reverse light circuits, US-spec license plate mounts (excluding 2019+ Ram 1500 due to bumper shape)

Professional Quality: Engineered and tested to deliver maximum performance and reliability, backed by Morimoto's industry-leading 5-year warranty.
