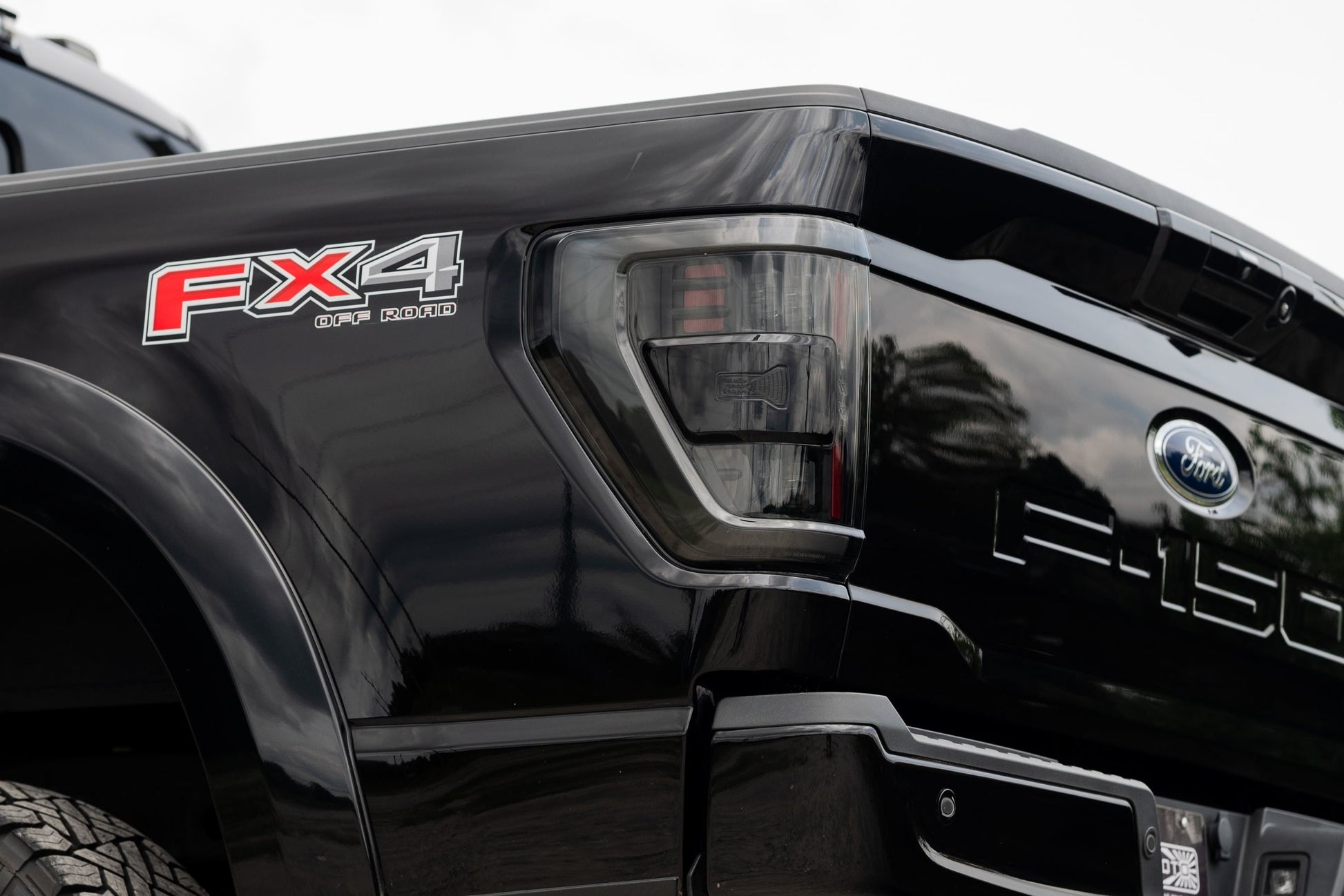

Morimoto XB LED Tail Lights - Ford F-150 2021-2023 (Smoked Lens)

Upgrade your Ford F-150 with the Morimoto XB LED tail lights featuring a smoked lens and modern 3D optics design. These premium tail lights deliver exceptional style, performance, and safety with complete plug-and-play installation.

Key Features

• Fitment: 2021-2023 Ford F-150 (all models and trim levels)

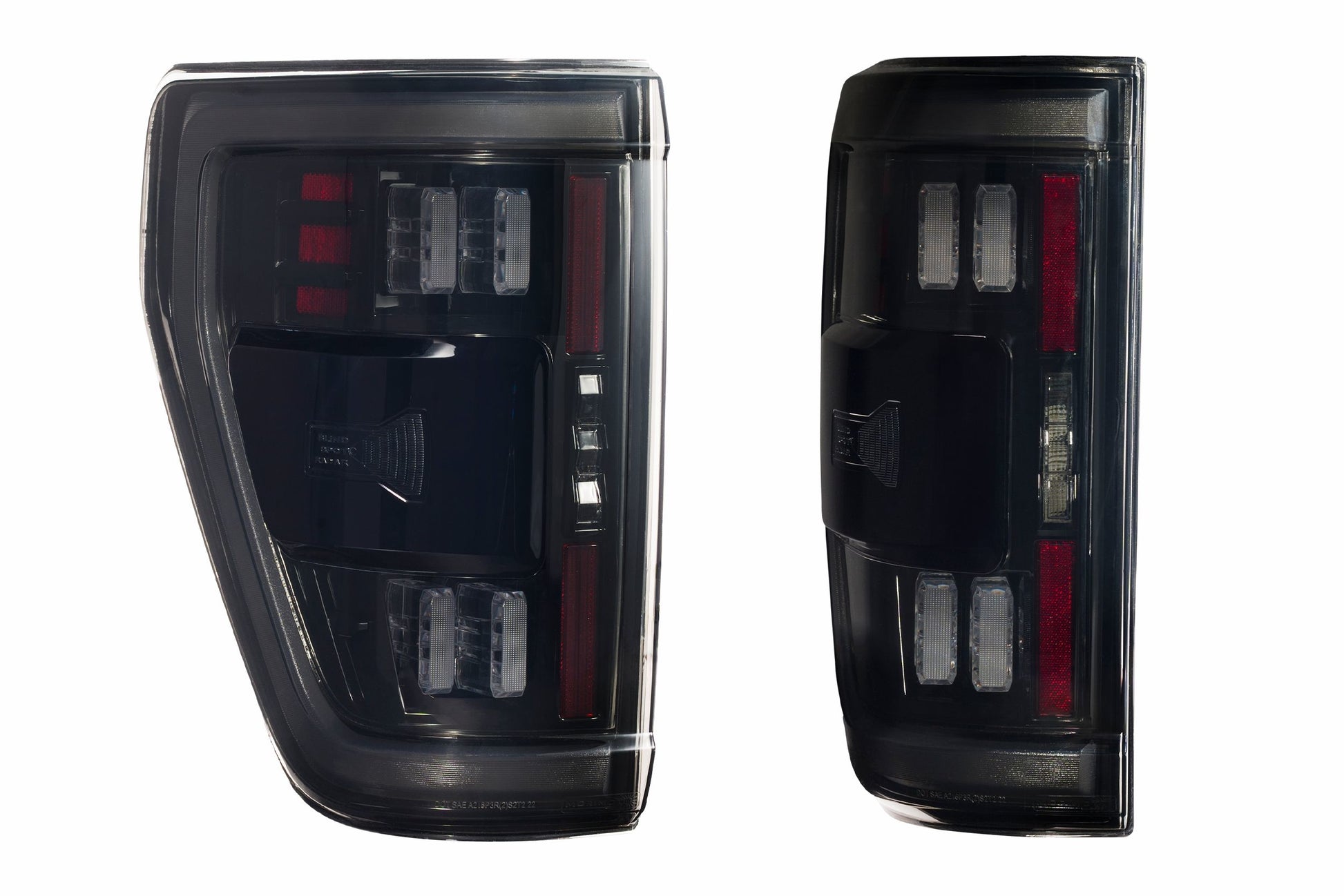

• Finish: Smoked lens with muscular trim
• Installation: 100% plug-and-play, 30-minute install
• Light Source: High-performance SSC LED
• Compliance: DOT, SAE, FMVSS108 certified
• Warranty: Industry-leading 5-year warranty
• Weight: 14 lbs per set

Ultimate Compatibility

Compatible with all versions of the 2021-2023 Ford F-150 including OE halogen, OE halogen with BLIS, OE LED with BLIS, and Raptor style tail lights. Even if your truck doesn't have BLIS, the XB tails will fit and function properly. Completely plug-and-play with factory wiring harness and radar system using all stock mounting points. Not compatible with 2024+ trucks or trucks with onboard scales/load leveling indicators.

Modern Design Inspired by 3rd Gen Raptor

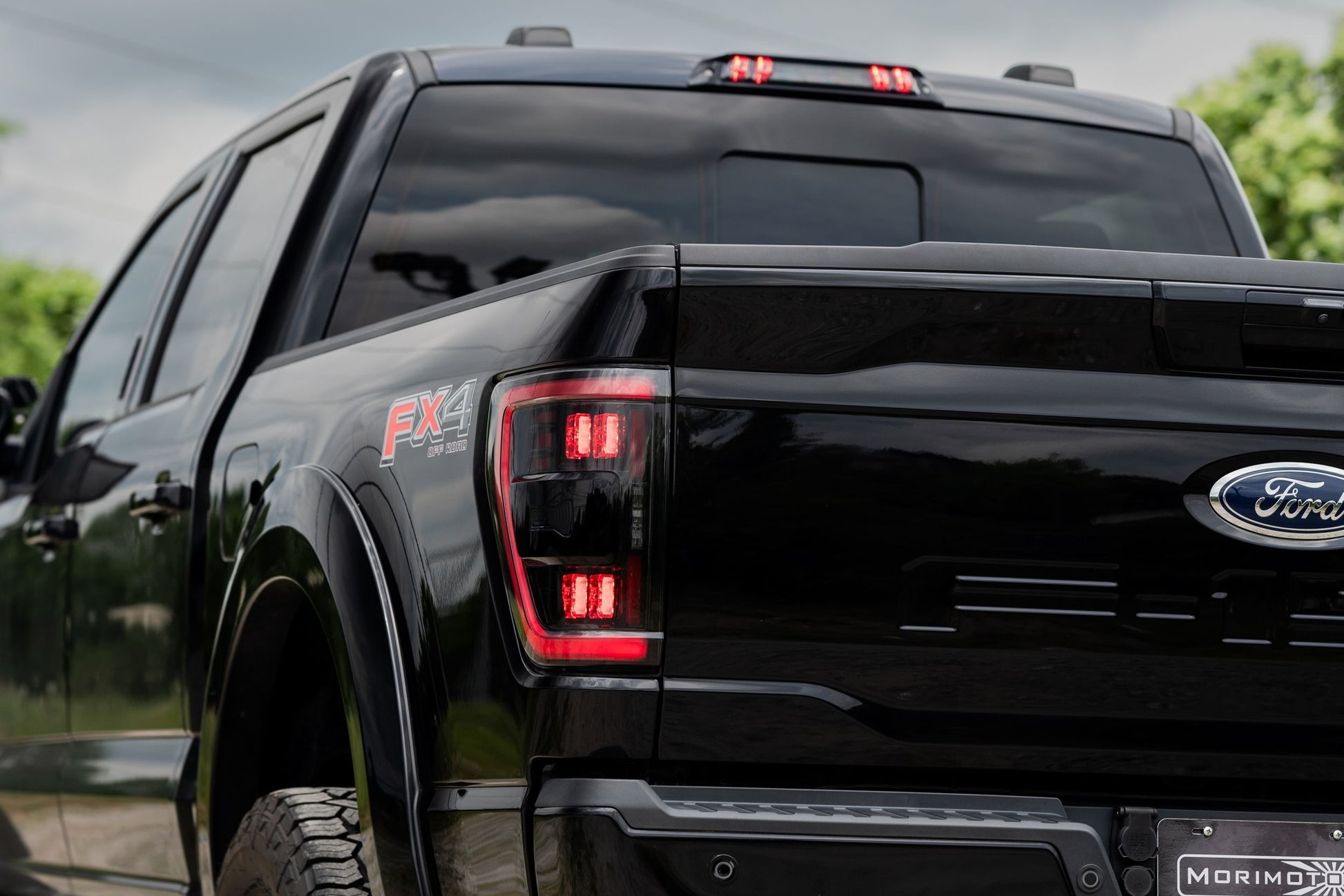

Inspired by the design of modern OEM LED tail lights from Ford and the 3D sidemarkers on the 3rd Gen Raptor, these look right at home on the rear end of the new F-150. Two clusters of 3D optics are illuminated from the rear with integrated TIR optics and serve as brake lights and turn signals. The parking light optic around the outer edge mirrors the OEM LED setup with impressive intensity day or night.

Enhanced Reverse Lighting

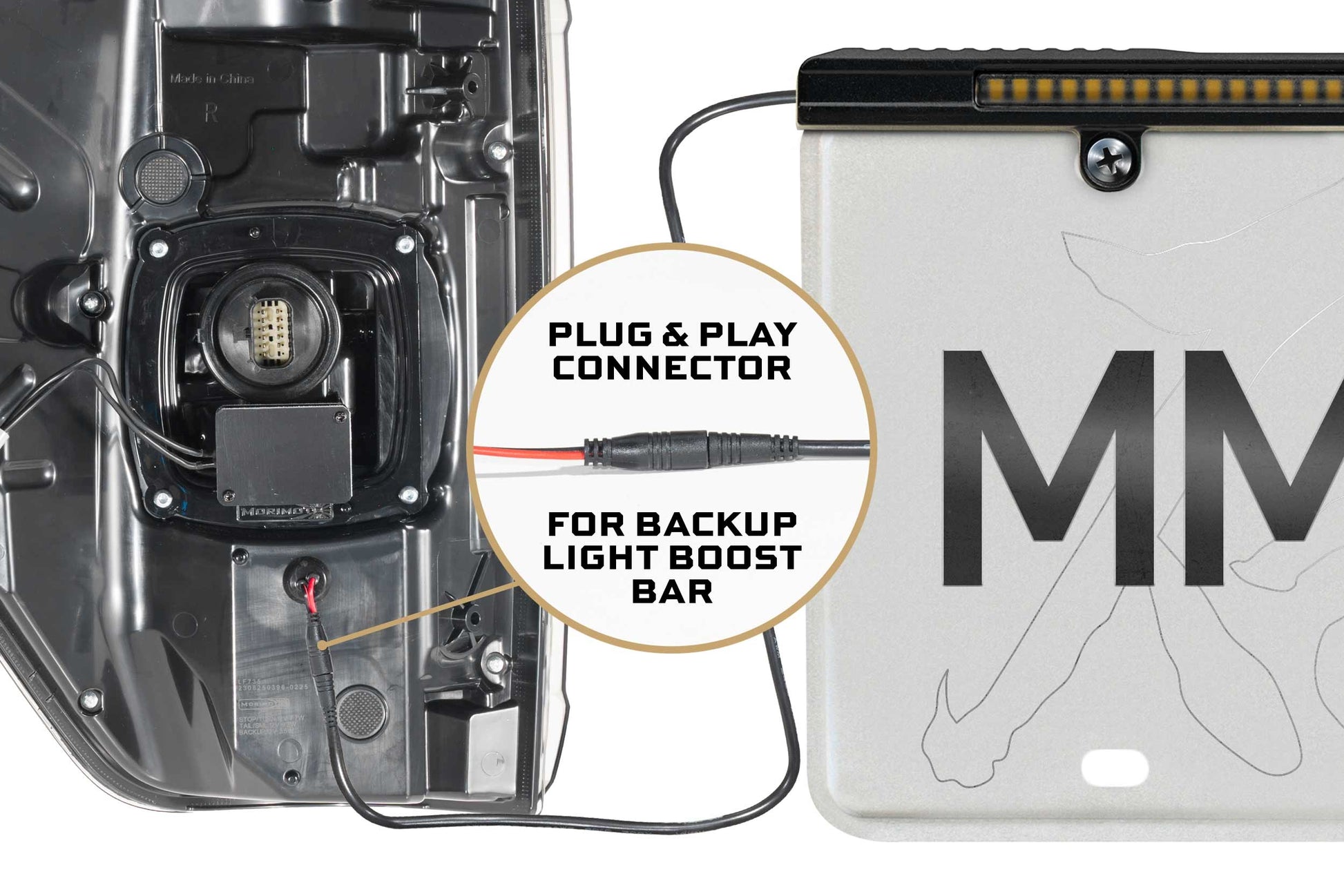

Powerful LED reverse lights come standard, with optional compatibility for Morimoto's BLBB (Backup Light Boost Bar) system. The optional LED Backup Boost Bar mounts to the top of your license plate frame and provides an extra 2,700 lumens of controlled light output in reverse.

Complete Plug-and-Play Installation

Everything you need for a hassle-free installation is included. The XB LED tails plug directly into factory connectors using the included plug-and-play harness. Includes die-cast BLIS mounts/heatsinks (BLIS modules must be swapped from OE lights). Should take no more than 30 minutes to install both tail lights.

Light Functions

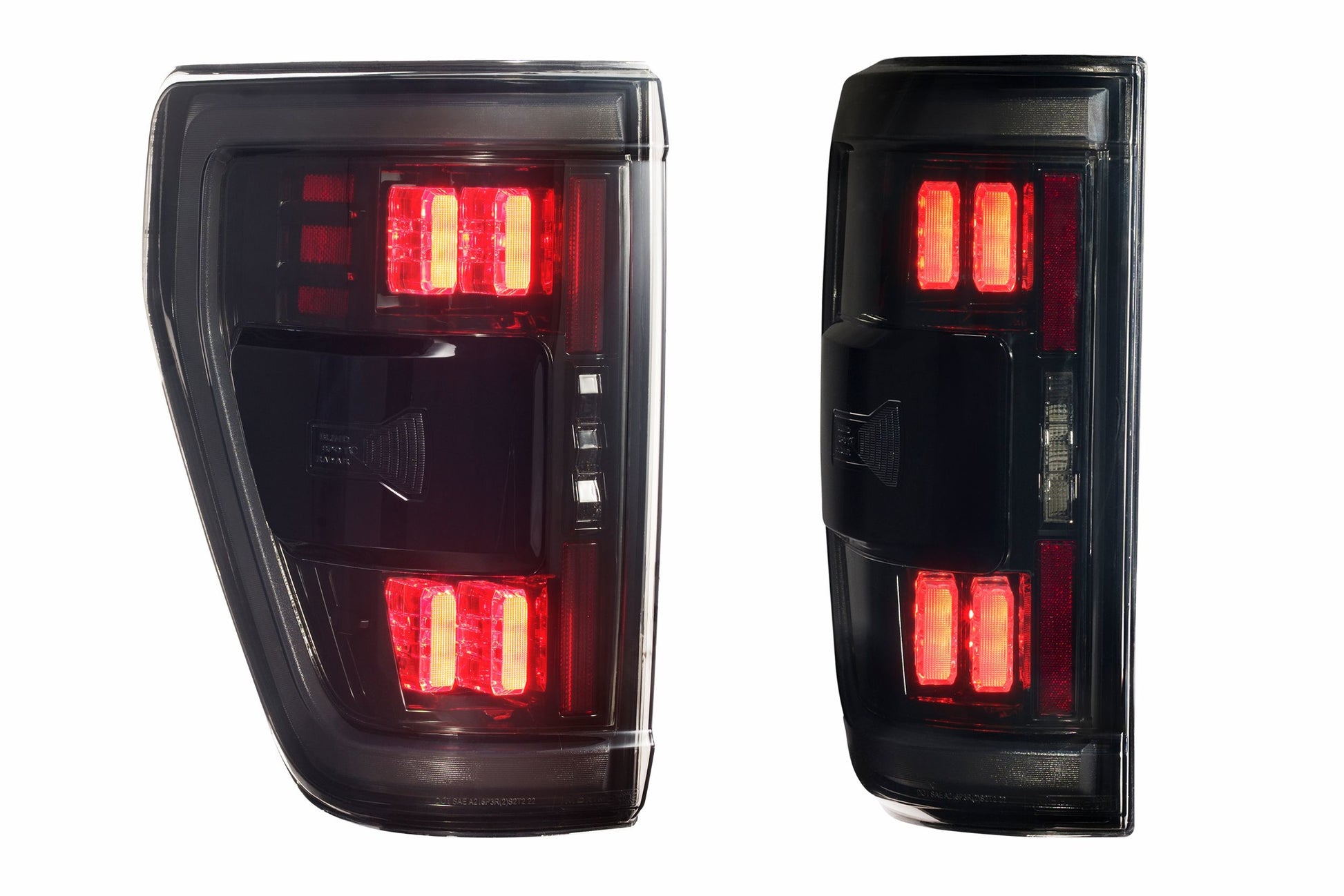

• Brake Light: Red LED
• Parking Light: Red LED
• Turn Signal: Red LED

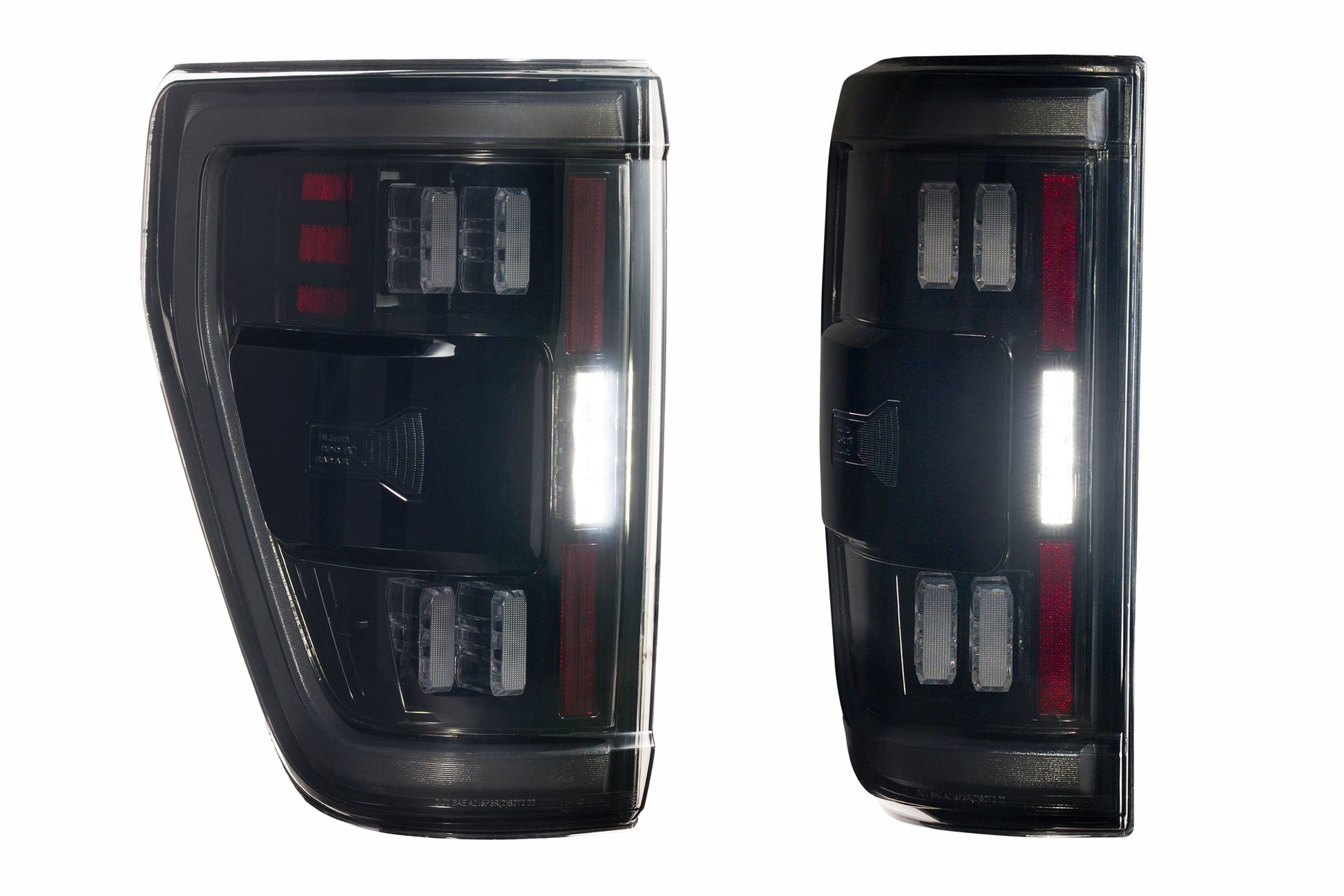

• Reverse Light: High-output white LED

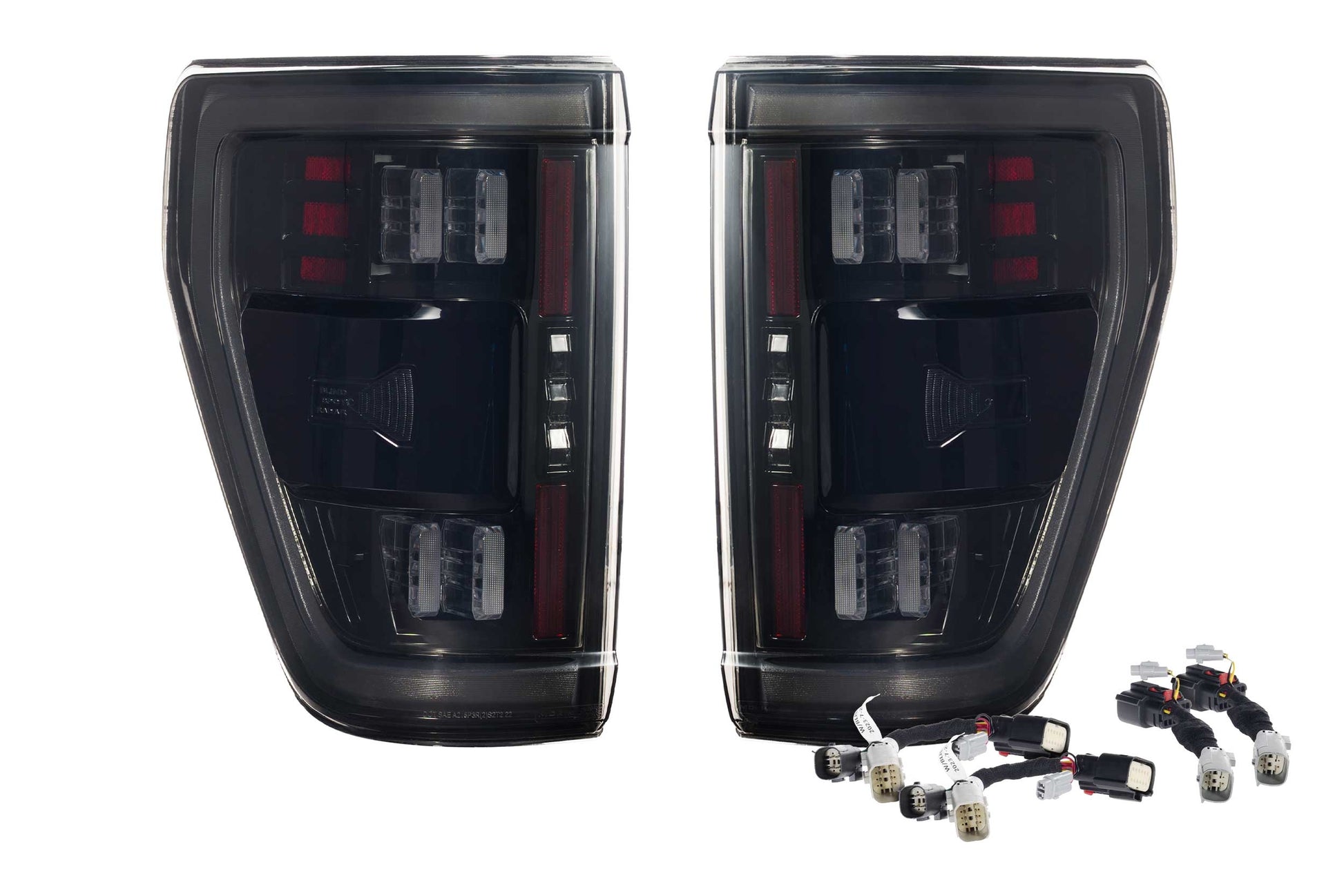

What's Included

• 2x XB LED tail lights (one pair)
• Plug-and-play wiring harness
• Die-cast BLIS mounts/heatsinks (internal BLIS modules must be swapped)
• 5-year warranty

Specifications

• Material: ABS plastic housing, UV-resistant polycarbonate lens
• Dimensions: 32.5" L x 17.8" W x 7.3" H
• Manufactured: China
• Replaces Ford Part Numbers: ML3Z-13405-D, ML3Z-13404-D, ML3Z-13405-F, NL34-13B505, ML34-13B505-C, ML34-13B505-E, ML34-13B505-F, ML34-13405-C, ML34-13405-E, ML34-13405-F, ML3V-13B505-Z, ML3Z-13404-ZK, ML34-13B504-BR, ML3Z-13405-C

Note: Not compatible with trucks equipped with onboard scales or load leveling indicators. Not compatible with 2024+ model year trucks.

Style and Safety Combined: All Morimoto tail lights are designed to comply with DOT, SAE, and FMVSS108 regulations for rear-facing lamps, verified by trusted third-party labs for compliance.

View Install Guide
